Installation reference / China
Equipment and installation views
This Guilin reference focuses on the connection between a pig lifting section and the suspended route. The equipment photograph and associated lifting footage can be used to compare transfer presentation, accessible service positions and the next conveyor interface.

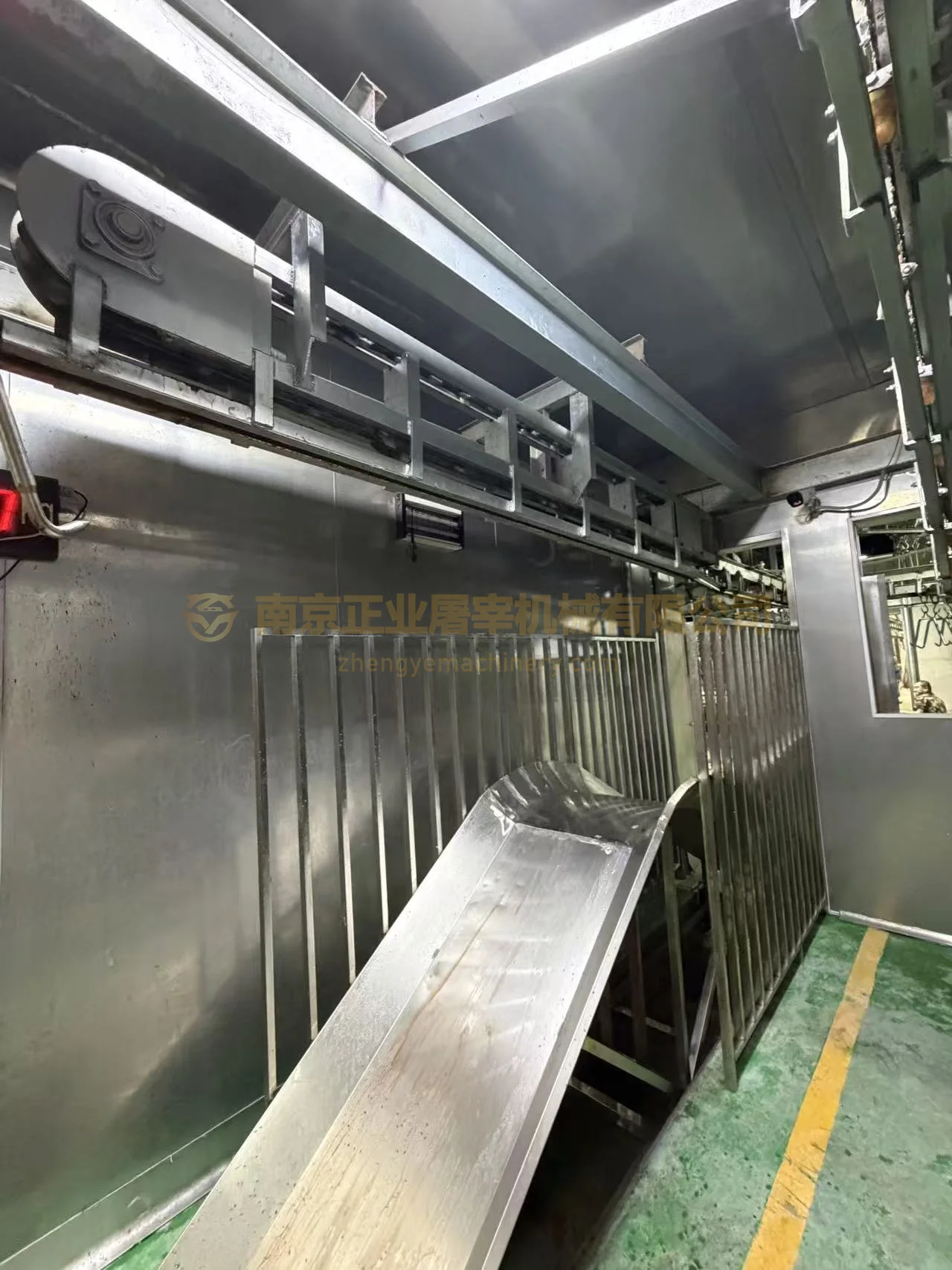

The selected equipment photograph shows the vertical-conveyor housing, overhead route and connected transfer area. The lifting clip shows the conveyor handling sequence. Review the equipment section in its complete route before choosing an isolated lift or transfer mechanism.
Questions to apply to your own plant
The questions below are a planning checklist for your purchase inquiry. Use the reference to describe your own operating tasks, retained machinery and proposed equipment boundary.
| Interface to review | Your site input | Proposal item to request |
|---|---|---|
| Receiving presentation | State the incoming hanging arrangement, orientation and transfer point. | A receiving interface matched to the preceding station. |
| Travel and supporting structure | Provide measured rail levels, headroom, structural supports and adjacent walkways. | A defined lifting route, equipment envelope and support-load interface. |
| Outgoing rail | Identify the next station and any retained trolley or rail system. | A reviewed connection rather than an assumed compatible rail. |
Define the equipment and installation scope
Ask the proposal to list the selected machines, incoming and outgoing transfer points, controls and service connections. Mark which rails, supports and stations will remain. Agree separately who supplies building works, drains, electrical distribution, local lifting facilities and any refrigeration or wastewater systems.
Before installation, place the equipment schedule beside a measured plan and confirm service readiness, access for moving machinery into the building, cleaning clearance and the responsibilities for checking each interface.
Preparing a Southeast Asian or Central Asian project
Start with the intended non-halal pig process, product outlet and site layout. For a Southeast Asian or Central Asian location, include the receiving country, water and heating services, wastewater route, maintenance arrangements and the local approval questions in the brief. Use the country guidance to prepare the discussion with the relevant local advisers.
