Installation reference / China
Equipment and installation views

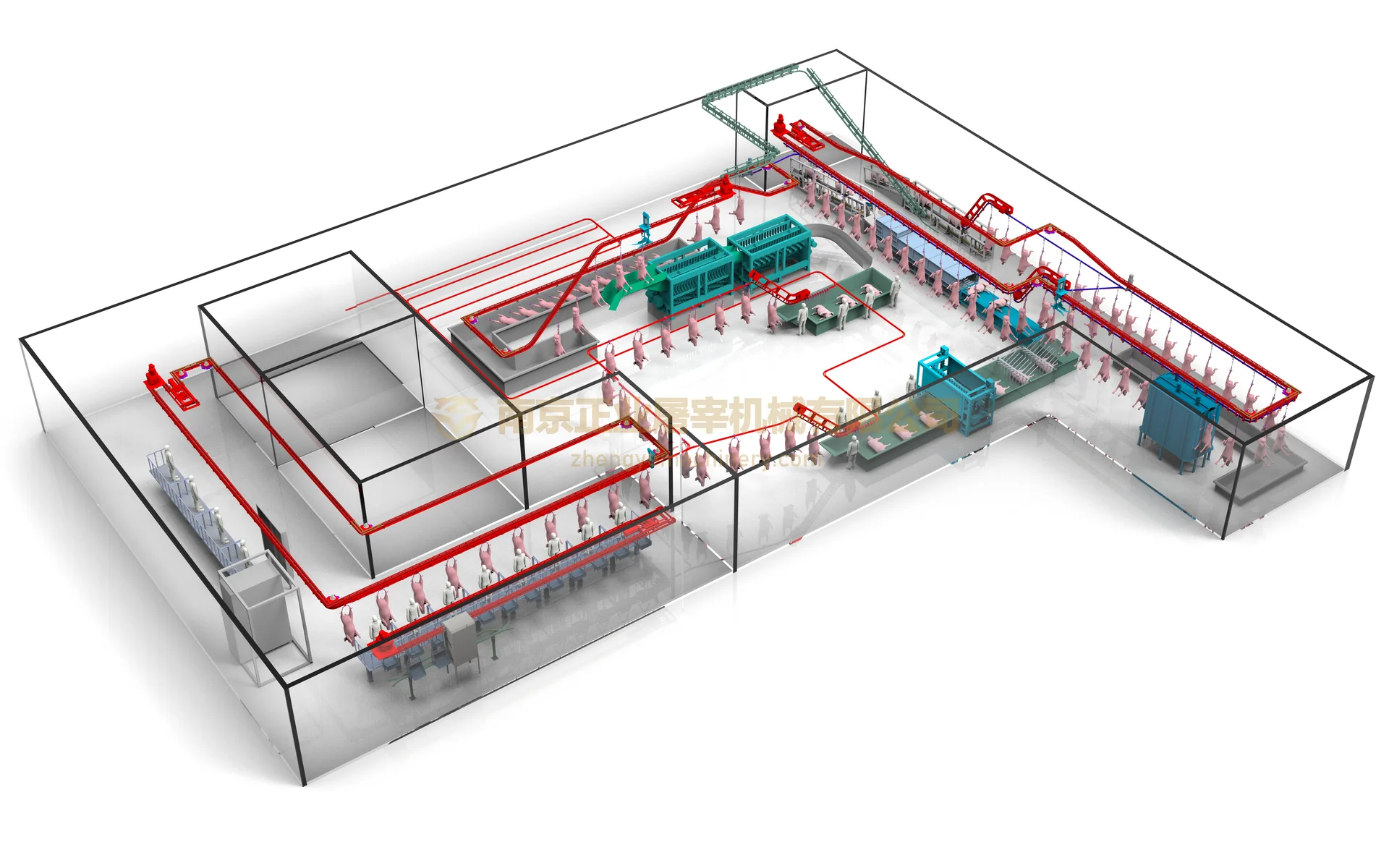

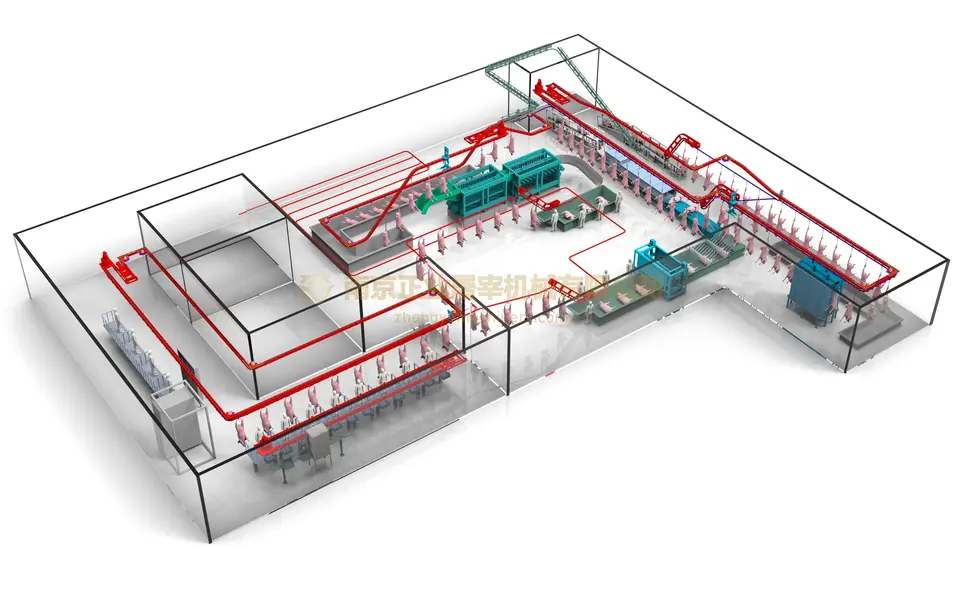

The Guiping reference pairs installation-stage equipment footage with a separate set of pig-line layout illustrations. The footage is useful for viewing the installed route; the illustrations show how stations and overhead transfers can be arranged during design.
The selected video views include overhead conveying, equipment enclosures and collection areas. The illustrations depict a proposed spatial arrangement and are presented as design material. Use each type of view for its own purpose when discussing your plant.
Questions to apply to your own plant
The questions below are a planning checklist for your purchase inquiry. Use the reference to describe your own operating tasks, retained machinery and proposed equipment boundary.
| Interface to review | Your site input | Proposal item to request |
|---|---|---|
| Flow through the building | Provide a measured floor plan, arrival route and intended product outlet. | A station sequence and transfer layout for your own brief. |
| Collection and local services | Identify water, heating, drainage and waste-handling responsibilities. | An equipment schedule with local-works handoff points. |
| Compare design and site | Mark the as-built columns, doorways, rail elevations and access routes. | A reconciled installation drawing before fabrication or retrofit. |
Define the equipment and installation scope
Ask the proposal to list the selected machines, incoming and outgoing transfer points, controls and service connections. Mark which rails, supports and stations will remain. Agree separately who supplies building works, drains, electrical distribution, local lifting facilities and any refrigeration or wastewater systems.
Before installation, place the equipment schedule beside a measured plan and confirm service readiness, access for moving machinery into the building, cleaning clearance and the responsibilities for checking each interface.
Preparing a Southeast Asian or Central Asian project
Start with the intended non-halal pig process, product outlet and site layout. For a Southeast Asian or Central Asian location, include the receiving country, water and heating services, wastewater route, maintenance arrangements and the local approval questions in the brief. Use the country guidance to prepare the discussion with the relevant local advisers.
